Features：This AAV expresses ReaChR-Citrine driven by a neuron CaMKIIα promoter. ReaChR(denoted red-activatable ChR) is a variant of ChR, is optimally excited with orange to red light (λ ∼590-630 nm) . Compared to existing red-shifted ChRs , it improved membrane trafficking,  higher photocurrents and faster kinetics. Citrine is a basic (constitutively fluorescent) yellow fluorescent protein published in 2001, derived from Aequorea victoria, with a Excitation/Emission spectrum around 516nm/529nm. It has moderate acid sensitivity.
Gene/Insert name：ReaChR
Tag/Fusion protein：Citrine
Titer：>1x10^13 VG/mL，>2x10^12 VG/mL
Volume：100μL

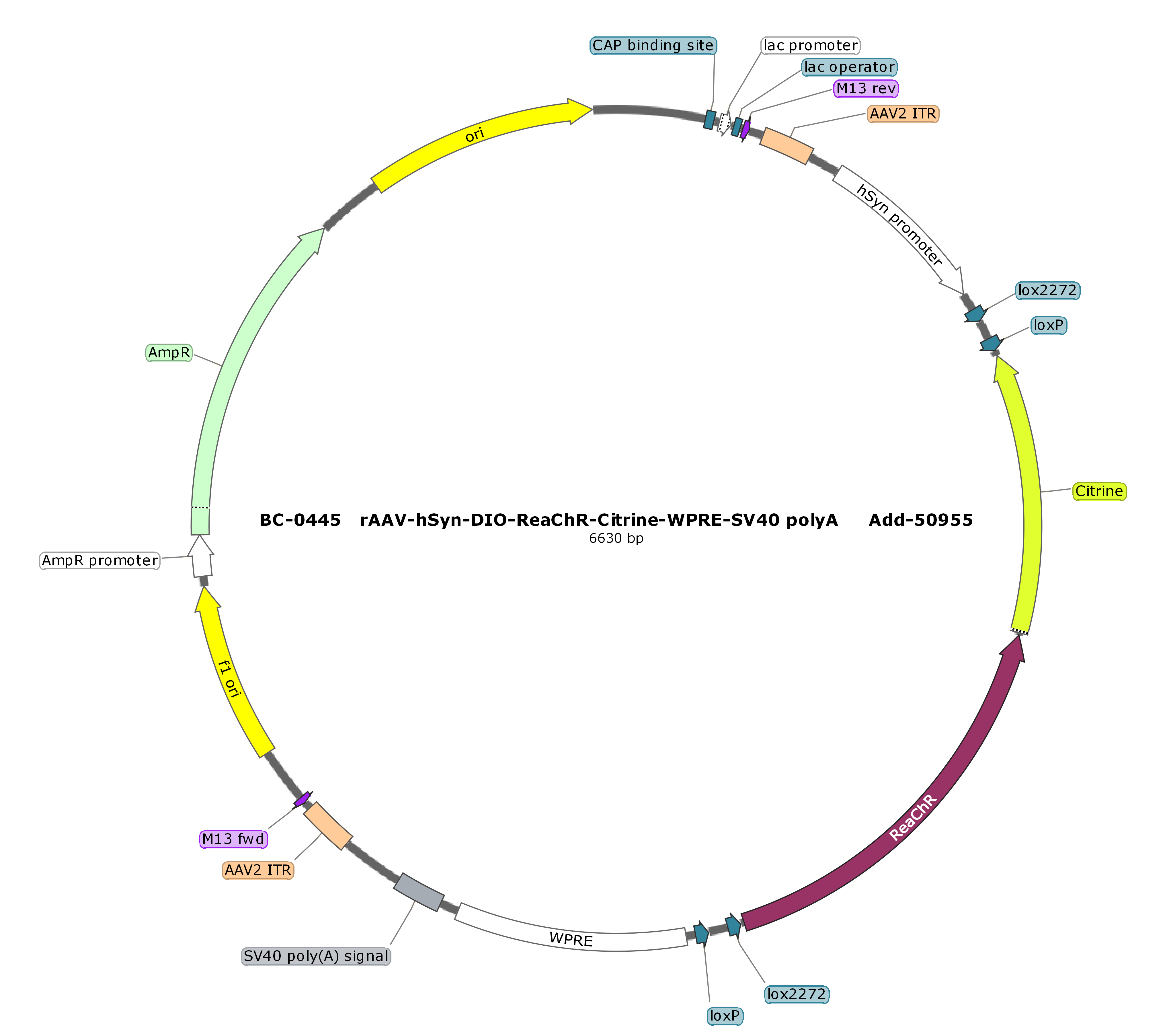

[Right-click on the plasmid map to view the high-resolution image in a new label page.]

Testing report
Please refer to the attachment as below.

Testreport-BrainCaseBC230728-0445-9.pdf1.12 MB
